    XLR to 1/4 inch Jack Cables

    im looking for these cables, i cant seem to fit the right ones anywhere...

    the male ones i have come across are not the right ones. They done have the clip in at the top.

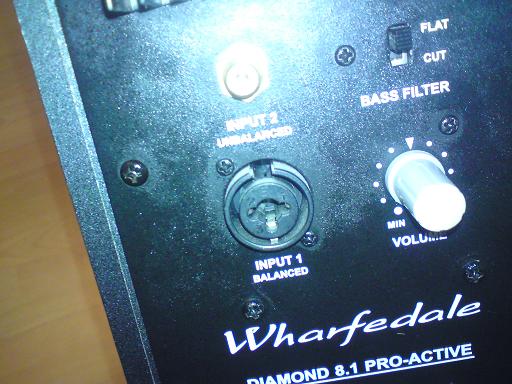

    i've added a pic if anyone could help i'd appreciate it.

    Cheers

    Attached Files:

  2. 1615634792921.png
  3. Play

    Play Registered User

    Joined:
    Dec 25, 2002
    Messages:
    7,969
    Likes Received:
    1
    Location:
    house
    the jack part is not the problem, it's the XLR to fit these speakers...
  4. Play

    Play Registered User

    Joined:
    Dec 25, 2002
    Messages:
    7,969
    Likes Received:
    1
    Location:
    house
  5. Jase

    Jase Blue Booked

    Joined:
    Nov 7, 2004
    Messages:
    3,118
    Likes Received:
    0
    Location:
    yeshiva
    this one :)

    http://www.soundslive.co.uk/product~name~Male-XLR-TRS-Jack~id~5543.asp

    also make sure they are going in to a balanced jack socket - the balanced cables are like stereo cables with the 2 notches, unlike unbalanced which has the one notch like mono

    the xlr plug on the back of the speaker looks like its a multifit jobbie with room for a jack plug in the middle? like some mixers have for mic inputs
  6. Play

    Play Registered User

    Joined:
    Dec 25, 2002
    Messages:
    7,969
    Likes Received:
    1
    Location:
    house

    top man, thanks alot Jase!
  7. Jase

    Jase Blue Booked

    Joined:
    Nov 7, 2004
    Messages:
    3,118
    Likes Received:
    0
    Location:
    yeshiva
    no worries mate :)

    in future just look at the middle, does it have pins, or does it have holes for pins, thats all that matters :)
  8. binston

    binston

    Joined:
    May 1, 2008
    Messages:
    81
    Likes Received:
    1
    Location:
    crammy masiv
    was thinking of getting some of these , what is the crack do they give much better sound quality/less interference and is there any that will hook straight up to a mixer?
  9. binston

    binston

    Joined:
    May 1, 2008
    Messages:
    81
    Likes Received:
    1
    Location:
    crammy masiv
    was thinking of getting some of these , what is the crack do they give much better sound quality/less interference and is there any that will hook straight up to a mixer?
  10. Jase

    Jase Blue Booked

    Joined:
    Nov 7, 2004
    Messages:
    3,118
    Likes Received:
    0
    Location:
    yeshiva
    you wont notice a massive change in sound quality, if any at all, so if you're happy with what you have, just leave it that way

    they do offer a better signal as its like sending two feeds to each place instead of one, they're handy for long runs, but if its just in your bedroom, you wont notice any difference

    if you're having problems with interference you should look in to keeping your audio cables away from any power cables

    what gear are you hooking up?
  11. paul

    paul Registered User

    Joined:
    Aug 21, 2002
    Messages:
    4,055
    Likes Received:
    1
    If it helps, you could just use a 1/4 inch jack on both ends. Although its an XLR, you can put the jack right in the middle and itll work fine, you can see that is one of the fittings that accepts it
  12. binston

    binston

    Joined:
    May 1, 2008
    Messages:
    81
    Likes Received:
    1
    Location:
    crammy masiv
    just the same speakers as above warfedale diamond 8.1 , but its strange as i can hear a slight buzz from one of the speakers but not the other and they are pretty much next to each other. even if i walk around with the one with the buzz i cant seem to find a place where it stops?
  13. Jase

    Jase Blue Booked

    Joined:
    Nov 7, 2004
    Messages:
    3,118
    Likes Received:
    0
    Location:
    yeshiva
  14. Play

    Play Registered User

    Joined:
    Dec 25, 2002
    Messages:
    7,969
    Likes Received:
    1
    Location:
    house
    i've just done that brother. Bit more straight forward.

    is that buzz loud fella? mine buzzez a little when switched on but not loads.
  15. binston

    binston

    Joined:
    May 1, 2008
    Messages:
    81
    Likes Received:
    1
    Location:
    crammy masiv
    nah its not loud tbh , but i thought it was abit strange that it was only coming from one speaker .
  16. Jamie_Bracken

    Jamie_Bracken Registered User

    Joined:
    Apr 24, 2003
    Messages:
    798
    Likes Received:
    0
    Location:
    The Bay
    i got loads of these if you want mik mate, no charge.
  17. Play

    Play Registered User

    Joined:
    Dec 25, 2002
    Messages:
    7,969
    Likes Received:
    1
    Location:
    house

    that is strange bro, not quite sure if it's just the one! sorry!

    brack-attack! i've got some now brother!!! thanks tho xx
